label applicator with paging machine

FOB Reference Price:Get Latest Price
US $3,100-3,230 / Sets | 1 Set/Sets Email: ipackall@hotmail.com (Min. Order)
Model Number:
NY-816
Report Suspicious Activity
Overview
Quick Details
Type:
Labeling Machine
Condition:
New
Application:
Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
Packaging Type:
Bags, bottles, cans, cartons, case, film, box, pouch etc.
Packaging Material:
Glass, Metal, Paper, Plastic, Wood
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
AC220V 50/60Hz
Power:
280W
Place of Origin:
Fujian, China (Mainland)
Brand Name:
NanYun
Dimension(L*W*H):
400mmx340mmx450mm
Weight:
36kg
Certification:
ISO9001
After-sales Service Provided:
Overseas third-party support available
Material:
Stainless steel, aluminum, carbon steel
Usage:
Adhesive label labeling on flat surface
Label type:
Adhesive labeler sticker, transparent or opaque
Max. width of label:
110mm
Labeling speed:
24 meters/min
Label roll diameter:
Inner Dia. 76 mm; Outer Max.Dia. 350mm
Accuracy:
±1mm
Applicable environment:
Temperature:5-40Humidity 15-85%(No condensation)
Supply Ability
Supply Ability:
200 Set/Sets per Month Whatsapp: 0086-15006001107
Packaging & Delivery
Packaging Details
seaworthy wooden case
Port
Xiamen

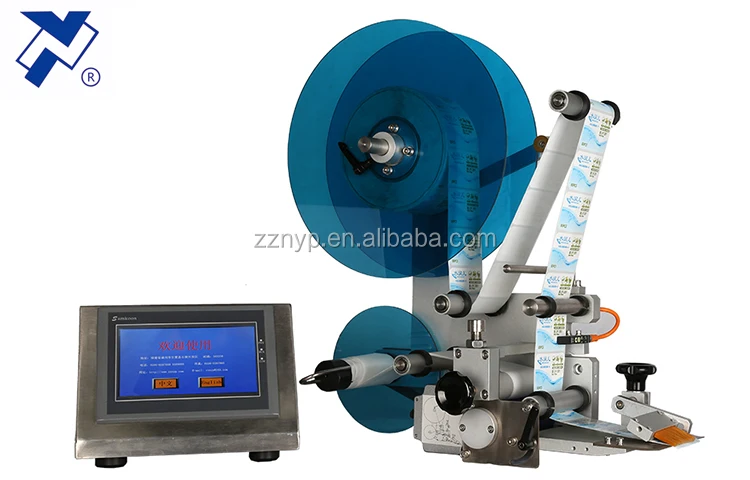

NY-816 Flat Surface Labeling Machine

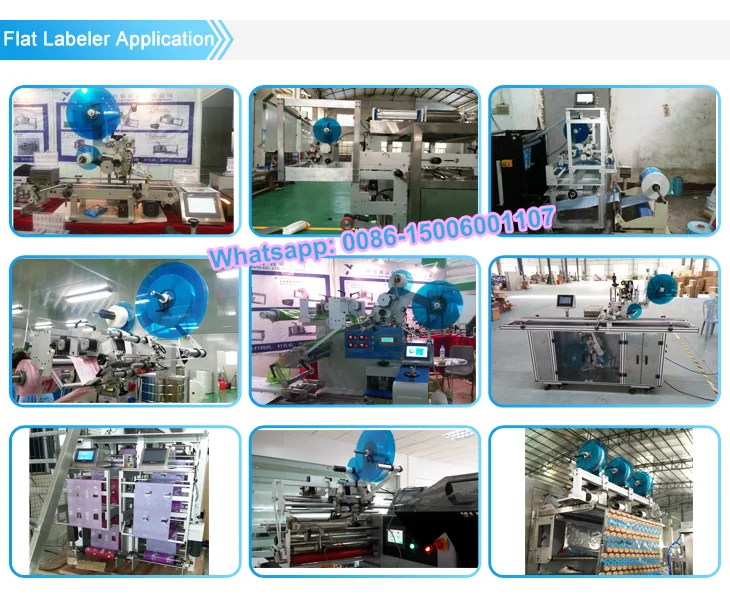

Applications:

It applies to food, cosmetic, pharmaceutical and other light industries in a variety of plane, flat square products, side and sweeping surface labeling. It is also suitable for horizontal and vertical packing machine.



Features:

1. The dual clutch makes the strain more balanced and stability to ensure the labeling accuracy.

2. The labeling head convenient to adjust, the labeling speed is automatically synchronous with the conveyor belt speed to ensure precise labeling.

3. The speed of conveyor line, the speed of pressure belt and the speed of label output can be set and changed by the human interface.



Technology Data:

Model

NY-816

Driver

Motor

Voltage

220V/50Hz

Power

150W

Labeling speed

24 Meters/min

Labeling precision

±1mm

Max. width label

110mm (Can be custom-made)

Inner diameter of paper roll

Dia.76mm

External diameter of paper roll

Max. Dia.330mm

Weight

36kg

Dimension(L*W*H)

560mm*340mm*550mm

Remarks: Other specification can be customized.
